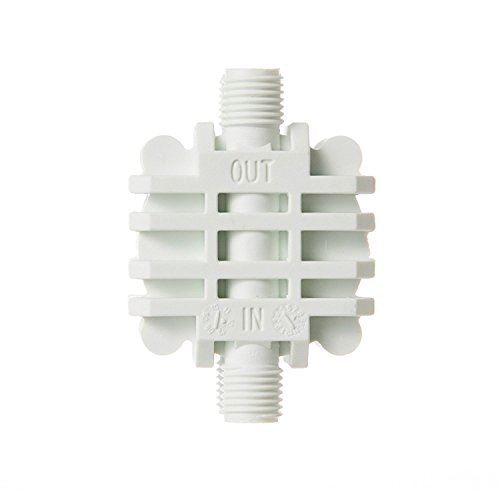

Reverse Osmosis Water System Auto Shut Off Valve 1/4" Tube compression type

$7.09

Reverse Osmosis Water System Auto Shut Off Valve 1/4" Tube compression type

  • Top side of the valve is the high pressure side
  • The bottom side of the valve is low pressure side.
  • The high pressure from the filter housings goes to the ( in ) on the top of the valve.
  • The high pressure ( out ) goes to the membrane housing "in".
  • The membrane housing low pressure ( out ) connects to the ( in) on the bottom side of the valve.
  • The ( out ) on the bottom of membrane housing goes to the RO tank. OD= Outside Diameter
